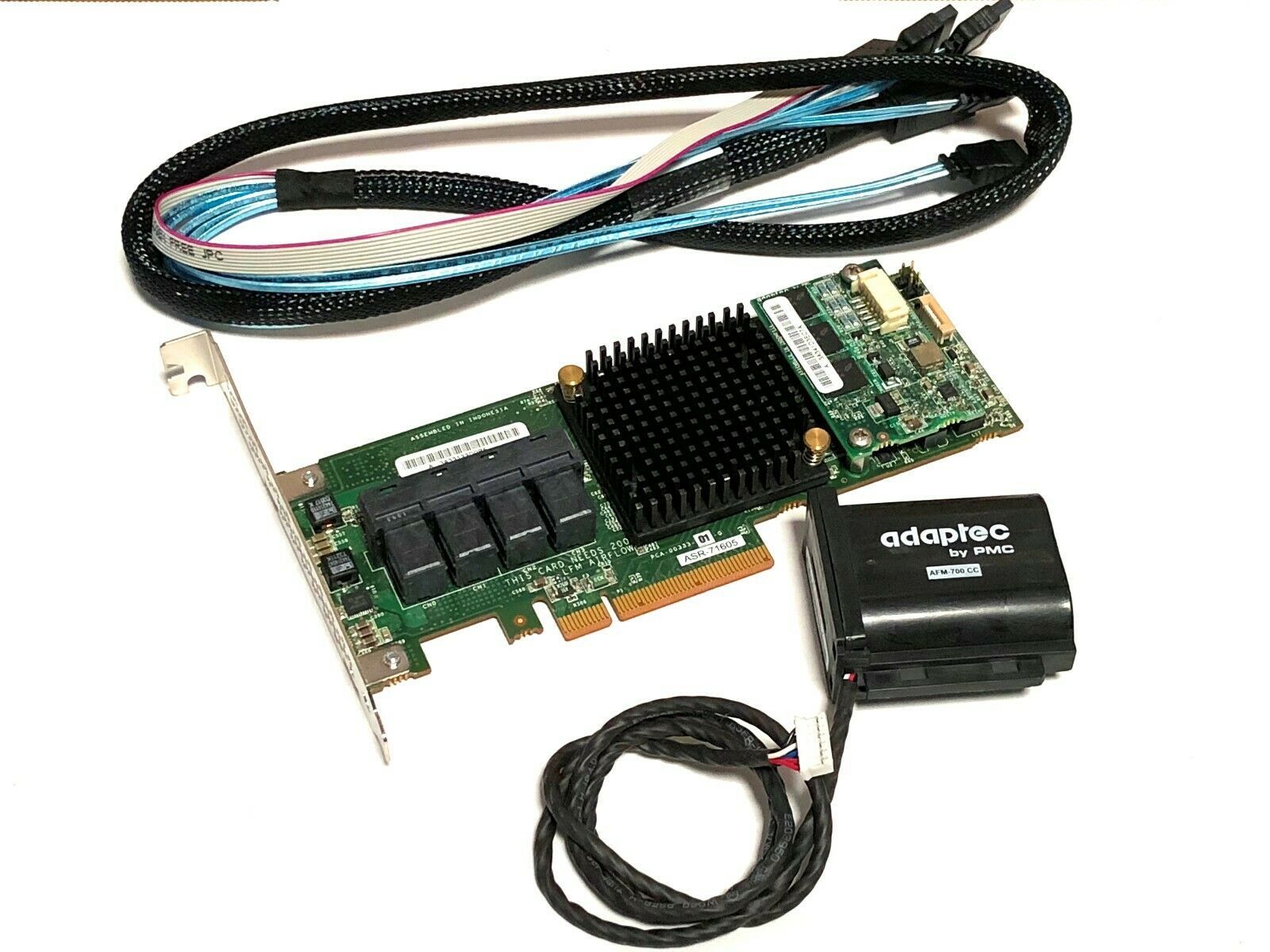

Adaptec ASR 71605 1GB 16Port HBA RAID PCIe Controller Card w/ Battery 4x Cables



  • Adaptec 71605 SAS/SATA 6Gb/s PCIe Gen3 RAID adapter reinvents the low-profile/MD2 form-factor space with double the competition’s port count and performance.
    4x HD SAS SFF-8643 to 4 SATA Cables (1 meter in length)
    1x AFM-700cc SuperCap Battery
    Operating System
    Microsoft Windows
    Red Hat Linux
    SUSE Linux
    Debian Linux
    Ubuntu Linux
    Sun Solaris
    VMware ESX
    Ideal for entry-level server to high-end server platforms and high-performance workstations without compromising robust 6Gb/s performance and proven Adaptec reliability.
    Customer Needs
    High I/O transaction and high bandwidth processing; solutions that reduce energy consumption and maintenance costs.
    Key Software Features
    • Optimized Disk Utilization
    • Supported RAID levels: 0, 1, 1E, 5, 6, 10, 50, 60
    • HBA Mode and Simple Volume Mode for automatic deployment
    • Supports up to 256 SAS or SATA devices using SAS expanders
    • Hybrid RAID 1 & 10
    • Quick initialization
    • Online Capacity Expansion
    • Copyback Hot Spare
    • Dynamic caching algorithm
    • Native Command Queuing (NCQ)
    • Background initialization
    • Hot-plug drive support
    • RAID Level Migration
    • Hot spares – global, dedicated, and pooled
    • Automatic/manual rebuild of hot spares
    • SES and SAF-TE enclosure management
    • Configurable stripe size
    • S.M.A.R.T. support
    • Multiple arrays per disk drive
    • Dynamic sector repair
    • Staggered drive spin-up
    • Bootable array support
    • Support for Tape Devices, Autoloaders
    Management Utilities
    • Adaptec maxView Storage Manager
    • Web based GUI Management Utility
    • OS Support: Windows, Linux, Solaris VMware
    • Remote configuration, monitoring & notification
    • Remote firmware updates
    • SMI-S Support
    • SMTP
    • Command Line Interface
    • SMI-S support for VMware

    Adaptec BIOS Configuration Utility (ACU)
    • BIOS level configuration utility
    • Flashable BIOS support

    Adaptec uEFI BIOS Configuration Utility
    • HII based confi guration utility
    • Flashable BIOS support

    Data Transfer Rate
    6 Gb/s per port
    Bus System Interface
    8-lane PCIe Gen3
    Form Factor
    MD2 – High Profile
    Cache Memory
    Connector Configuration
    Four internal mini SAS HD (SFF-8643)
